Especificações Técnicas
Conexões de Saída
HDMI, SDI

Marca
Datavideo

Garantia
3 anos

Resolução
1080, 4K

Video format 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Image Sensor 1/2.3” Type Exmor R CMOS
Effective Pixels (approx.) 8.93 Mega pixels
Min. Illumination 50%, High Sensitivity Mode:
Color: 0.75 lx (F1.8, AGC on, 1/30 sec)
50%, Normal Mode:
Color: 3 lx (F1.8, AGC on, 1/30 sec)
Electronic Shutter 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec
Zoom Ratio 12x Optical Zoom
Gamma Control Off / Normal / Standard Mode 1-4
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English
White Balance Auto, Indoor, Outdoor, Sodium Vapor Lamp, One-push, Manual
AGC / Gain Control Auto/Manual (0 dB to 33 dB)
Max. Gain Limit (9 dB to 33 dB)
Mirror / Flip Image Yes
Focus Mode Auto (Sensitivity: Normal, Low), One-push AF, Manual, Zoom Trigger AF
Panning / Tilting Range Pan: 270° , Tilt: +90° to -17°
Panning / Tilting Speed Manual: 1~150°/Sec
Swing: 1~150°/Sec
Preset 50 Positions
Focal Length f=3.9 mm (Wide) to 46.8 mm (Tele)
Field of View (Horizontal, Wide) Approx. 70.7° (WIDE END) / 6.4° (TELE END)
Image Compensation Day & Night Function

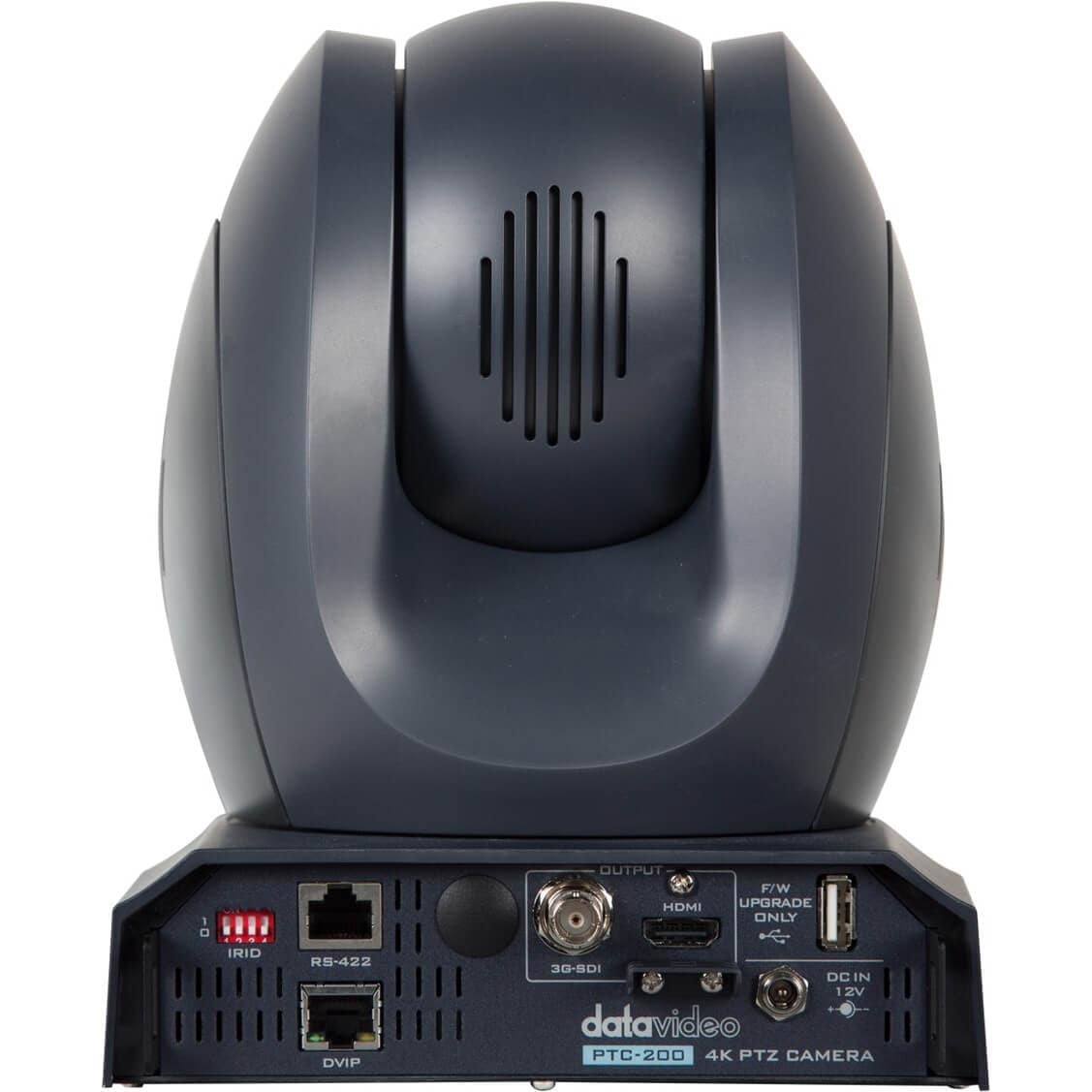

Video Output HDMI x1
3G-SDI x1
Tally LED Dual Color (Red, Green)
Filter No
Protocol VISCA, DVIP
Remote Control Interface and Transmit Distance RS-422: Transmit up to 1000m
DVIP (RJ45): 100m
F/W Update USB
IR Control Yes
Camera Control Unit RMC-180/RMC-300C
Tripod Mount 1/4-20 UNC
Options WM-1
Color Black
Dimension (LxWxH) 173 x 189 x 219 mm
Weight 2.8 kg
Operating Temp. Range 0~40 °C
Power DC 12V 33W

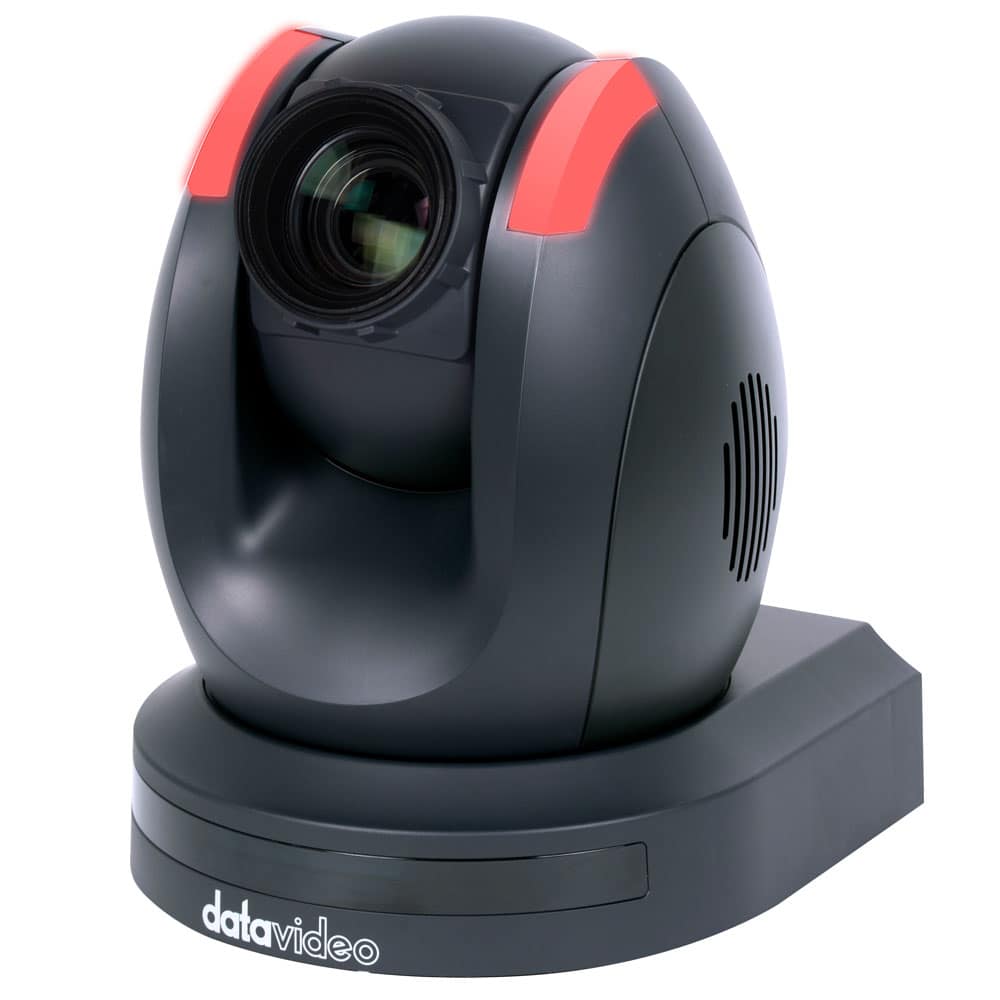

What’s in the Box 1 x PTC-200 Unit
1 x IR remote controller
1 x PTC-200 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
