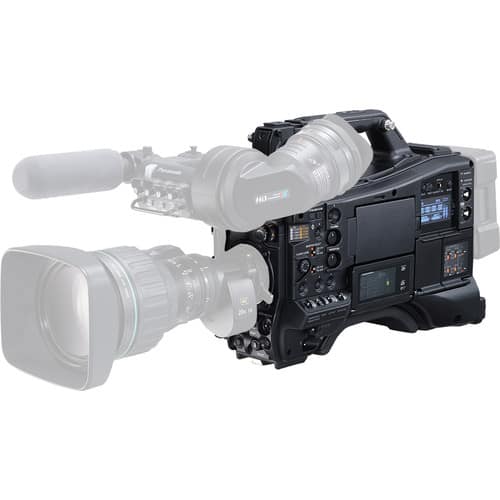

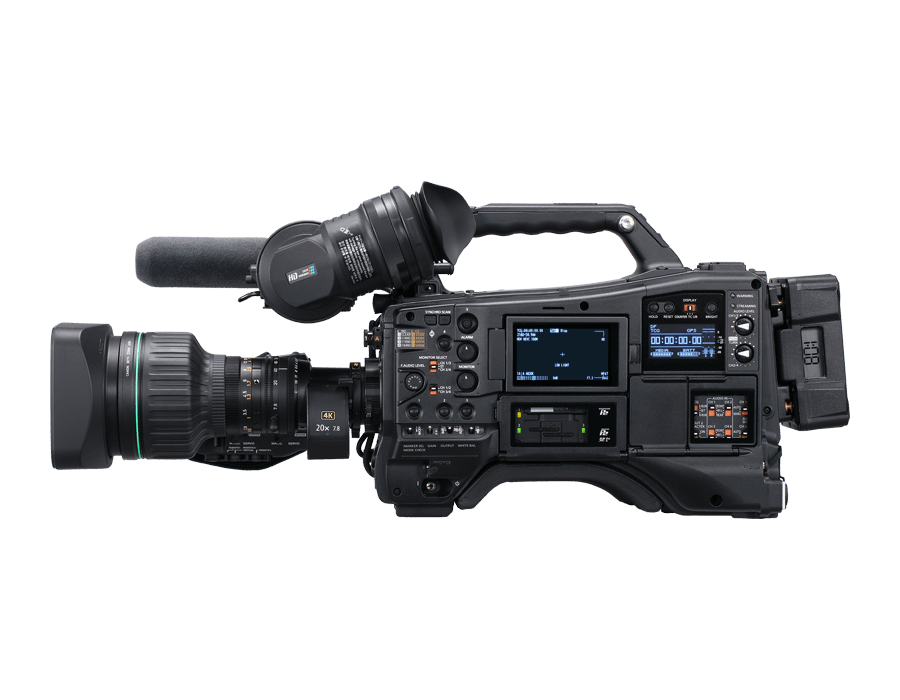

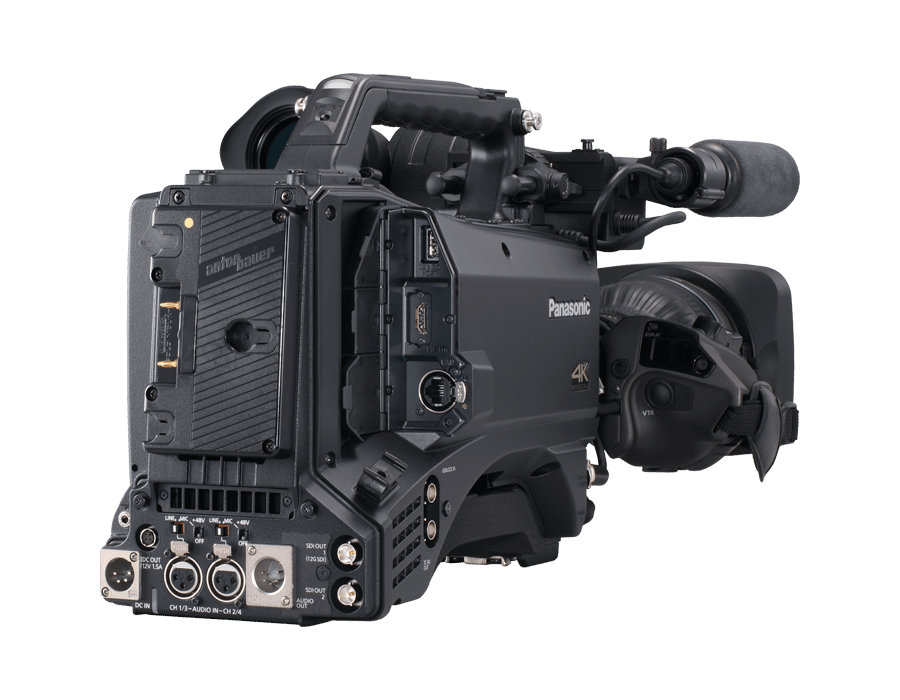

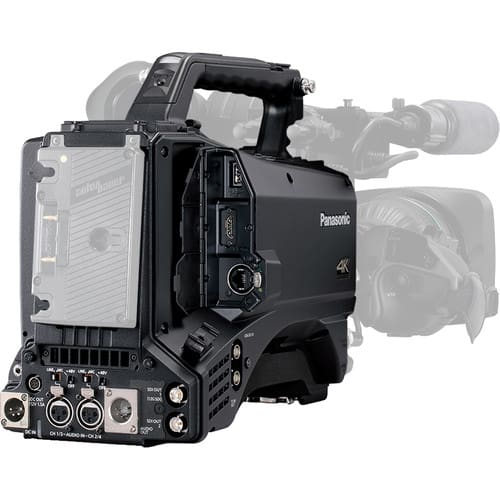

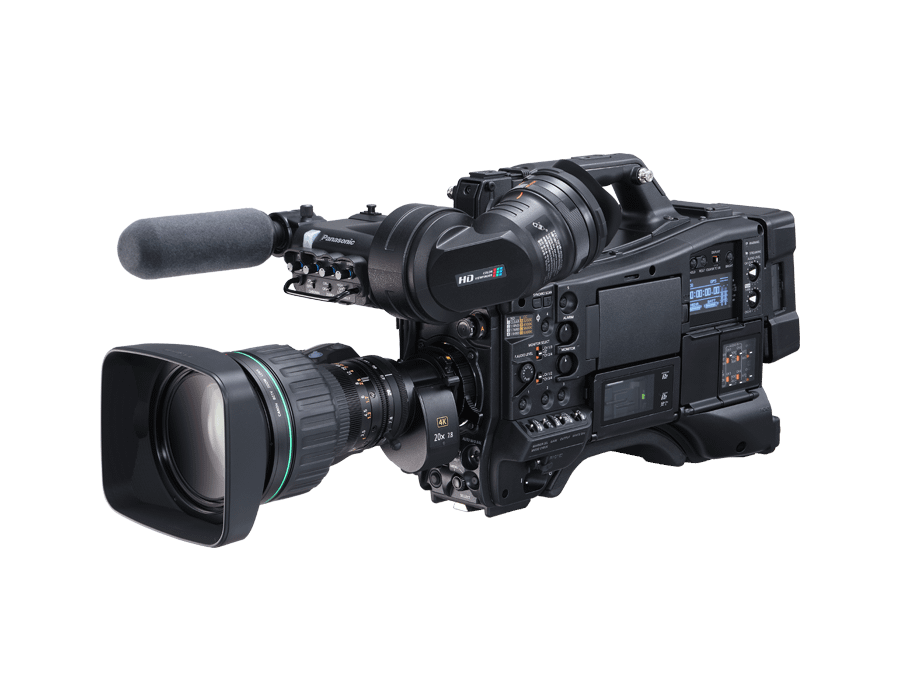

Panasonic AJ-CX4000

Panasonic AJ-CX4000GJ (AJCX4000GJ) Câmera de vídeo UHD P2 de montagem no ombro, montagem de lente B4, UHD 50p 10 bits 4: 2: 2, saída 12G-SDI, HDR (HDR (compatível com BT.2100 e BT.2020). Câmera de vídeo de ombro ENG de
última geração que suporta conexão 4K / HDR e IP O AJ-CX4000 é a mais recente adição à câmera de vídeo 4K ‘CX Series’, que foi introduzida para oferecer suporte à aquisição de conteúdo UHD para operações de coleta de notícias, transmissão de eventos ao vivo e captura de esportes e documentários.
O CX4000 possui um suporte de lente B4 intercambiável e é equipado com um sensor MOS de 11MP recentemente desenvolvido com uma resolução horizontal de 2000 linhas de TV. É compatível com a captura HDR, suportando o espaço de cores BT.2100 e BT.2020, fornecendo imagens com alta sensibilidade e baixo ruído.
A TECNOLOGIA “LSSIEL *” ATINGE MAIS ALTA QUALIDADE 4K / HDR
Com um sensor 4.4K recentemente desenvolvido, ele obtém resolução de alta definição, alta sensibilidade, baixo ruído e uma ampla faixa dinâmica. Além disso, o recém-desenvolvido filtro de cor reduz o vazamento de energia para outros canais e melhora as características espectrais.
Isso permite uma reprodutibilidade de cores equivalente à …

Nova geração com excelente qualidade de imagem 4K / HDR e funções avançadas de rede

AJ-CX4000GJ responde às necessidades emergentes do setor de transmissão, como gravação 4K de alta qualidade e distribuição de rede, mantendo o design de montagem em lente e ombro B4 padrão de transmissão.

O sensor de imagem de 11,14 M pixels de tamanho grande fornece uma alta resolução horizontal de 2000 linhas de TV para gravação de imagens 4K / HDR. Um fluxo de trabalho ágil pode ser realizado usando o codec HEVC para gravação 4K de 10 bits de alta eficiência e o cartão expressP2 com alta velocidade de transferência. Além disso, a função de transmissão direta em HD que permite transmissão ao vivo para mídias sociais e a função de conexão IP * ¹ compatível com NDI | HX oferecem soluções inovadoras de rede.
O AJ-CX4000GJ também suporta o codec AVC-ULTRA * ²usado pela série P2HD para permitir uma conexão suave com os sistemas de transmissão HD existentes. Ele fornece suporte avançado em várias aplicações, como transmissão ou gravação de eventos esportivos e na produção de documentários.

* 1: NDI | HX, uma tecnologia da NewTek, Inc. Para usar esta função, é necessário um código de chave de ativação da NewTek.
* 2: Use um cartão expressP2 ou um cartão microP2 para gravar no formato P2. Cartões P2 convencionais não podem ser usados.

RECURSOS

Imagens 4K e HDR de alta qualidade

Codec HEVC de alta eficiência

Função de rede IP

FLUXO DE TRABALHO

Sistema de transmissão de vídeo ao vivo

* A LAN com fio e a rede Wi-Fi não podem ser operadas simultaneamente.

NDI Sistema de produção ao vivo com várias câmeras HX

ACESSÓRIOS

Visor eletrônico em cores HD de 87,6 mm (3,45 polegadas)

AG-CVF15G

Abra duas maneiras para a visualização do monitor LCD.
Cartão de memória “cartão expressP2” Série C

AU-XP0512CG (512GB)
AU-XP0256CG (256GB)

Para gravação em 4K / taxa de quadros de alta velocidade.
Microfone estéreo

AJ-MC900G
Módulo sem fio

AJ-WM50G

* Não disponível em algumas áreas.

Mais Informações

Additional Information

Especificações	Specification PDF General Power DC 12 V (11.0 V – 17.0 V) Power Consumption 32 W (body only, 2160‑59.94p/HEVC LongGOP 100M standard recording status, LCD ON) 72 W (with all the accessories connected and maximum power supplied from each output terminal) Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Operating Humidity 10% to 85% (relative humidity) Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Weight* Approx. 3.4 kg (7.5 lbs.) (body only) Dimensions* 143 mm (W) x 267 mm (H) x 348 mm (D) (5-5/8 inches x 10-1/2 inches x 13-23/32 inches) (body only, excluding protrusion) Camera Unit Pickup Device MOSx1 Number of Pixels 11.14 million pixels Lens Mount 2/3-type bayonet Optical Filter CC filter A: 3200 K, B: 4300 K, C: 5600 K, D: 6300 K ND filter 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND Gain Setting -6 dB to 30 dB, can be set in 1 dB steps Digital Super Gain (DS.GAIN) Selectable from 6 dB, 10 dB, 12 dB, 15 dB, 20 dB, 24 dB, 28 dB, 34 dB Super Gain (S.GAIN) Selectable from 30 dB, 36 dB, 42 dB Shutter Speed 59.94 Hz 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 50.00 Hz 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF Synchro Scan Shutter 59.94 Hz 59.94i/59.94p mode 1/60.0 sec. to 1/7200 sec. 29.97p mode 1/30.0 sec. to 1/7200 sec. 23.98p mode 1/24.0 sec. to 1/7200 sec. 50.00 Hz 50i/50p mode 1/50.0 sec. to 1/7200 sec. 25p mode 1/25.0 sec. to 1/7200 sec. Shutter Open Angle 3.0 deg to 360.0 deg (can be set in 0.5 deg steps) Sensitivity [NORMAL] mode F6 (2000 lx, 3200 K, 89.9% reflection, 59.94 Hz) F7 (2000 lx, 3200 K, 89.9% reflection, 50.00 Hz) [HIGH SENS.] mode F10 (2000 lx, 3200 K, 89.9% reflection, 59.94 Hz) F11 (2000 lx, 3200 K, 89.9% reflection, 50.00 Hz) Minimum Illumination Approx. 0.005 lx (F1.4, +42 dB (S.GAIN), +34 dB (DS.GAIN)) Image S/N 62 dB (standard) Horizontal Resolution UHD 2000 TV or higher (center) HD 1000 TV or higher (center) Digital Zoom x2, x3, x4 Memory Card Recorder Recording Media • expressP2 card • microP2 card • SDXC memory card (exceeding 32 GB to 128 GB) UHS-I/UHS-II, UHS Speed Class 3 compatible, video Speed Class V90 compatible Recording Slot expressP2 card slot x 1 microP2/SDXC UHS-II memory card slot x 2 Recording Pixels 3840 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD) (AVC-Intra50: 1440 x 1080, 960 x 720) System Frequency 59.94 Hz/50.00 Hz Recording Format Please see the "Recording Format" table. Recording Video Signal 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p, 59.94i, 50i 1280 x 720/59.94p, 50p 1440 x 1080/59.94i, 50i (AVC-Intra50) 960 x 720/59.94p, 50p (AVC-Intra50) Recording Time Please see the "Recording Time" table. Two-slot Function Simultaneous recording, Relay recording Special Recording Pre-recording, Interval recording Digital Video Number of Quantizing Bits • P2: 4:2:2 10 bit/4:2:0 10 bit (AVC-Intra50)/4:2:0 8 bit (AVC‑LongG12) • MOV: 4:2:2 10 bit)/4:2:0 8 bit/4:2:0 10 bit (HEVC) Video Compression • P2: AVC‑Intra 422/AVC‑LongG50/AVC‑LongG25/AVC‑LongG12: MPEG-4 AVC/H.264 High Profile • P2: AVC-Intra200/AVC-Intra100/AVC-Intra50:MPEG-4 AVC/H.264 Intra Profile • MOV: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile Digital Audio Recording Audio Signal P2 48 kHz/24 bit, 4 ch (excluding AVC_LongG12) 48 kHz/16 bit, 4 CH (AVC-Intra100/AVC-Intra50/ AVC_LongG12) 24 bit/16 bit switch by menu MOV 48 kHz/24 bit, 4 CH Audio Recording Format P2 LPCM MOV LPCM Headroom 18 dB/20 dB (Can be selected by menu) Streaming Video Compression H.264/MPEG-4 AVC Main Profile H.264/MPEG-4 AVC High Profile Video Resolution 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 Streaming Method Unicast, Multicast Frame Rate [59.94 Hz] 24 fps, 30 fps, 60 fps [50.00 Hz] 25 fps, 50 fps Bit Rate 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps Audio Compression AAC‑LC: 48 kHz/16 bit, 2 CH Supported Protocol RTSP/RTP/RTMP/RTMPS Video Output SDI OUT1 • BNC x 1 12G-SDI: 0.8 V [p‑p], 75 Ω, 3G/HD‑SDI: 0.8 V [p‑p], 75 Ω • SDI remote control supported • Output format (4:2:2 10 bit) 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF, 1280 x 720: 59.94p, 50p SDI OUT2 • BNC x 1 3G/HD‑SDI: 0.8 V [p‑p], 75 Ω, SD‑SDI: 0.8 V [p‑p], 75 Ω • SDI remote control supported • Output format (4:2:2 (10 bit) output) 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF 1280 x 720: 59.94p, 50p, 720 x 480: 59.94i, 720 x 576: 50i HDMI • HDMI type A x 1 (not compatible with VIERA Link) • HDMI remote control supported • Output format (4:2:2 (10-bit) output) 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p 1280 x 720: 59.94p, 50p, 720 x 480: 59.94p, 720 x 576: 50p Auduio Input/Output AUDIO IN XLR x 2 (CH1/3, CH2/4), 3-pin LINE/MIC/MIC+48V selected by switch • LINE: 4 dBu/0 dBu/-3 dBu selected by menu • MIC: -40 dBu/-50 dBu/-60 dBu selected by menu • MIC+48V: + 48 V/OFF compatible MIC IN XLR x 1, 5-pin +48 V ON/OFF selected by menu -40 dBu/-50 dBu/-60 dBu selected by menu Wireless Slot 25-pin, D-SUB, -40 dBu, 2ch supported AUDIO OUT XLR x 1, 5-pin 4 dBu/0 dBu/-3 dBu selected by menu, equilibrium low impedance SDI OUT LPCM 4 CH HDMI LPCM 2 CH Phones 3.5 mm diameter stereo mini jack x 2, output impedance 100Ω Built-in Speaker 20 mm diameter, round x 1 Other Input/Output GENLOCK IN BNC x 1, 1.0 V [p‑p], 75 Ω TC IN/OUT BNC x 1, Used as input/output terminal, switch by menu • Input: 0.5 V – 8.0 V [p-p], 10 kΩ • Output: 2.0 V±0.5 V [p‑p], low impedance DC IN XLR x 1, 4-pin, DC 12 V (11.0 V – 17.0 V) DC OUT 4-pin, DC 12 V (11.0 V – 17.0 V), maximum output current 1.5 A Lens 12-pin VF 20-pin LAN RJ-45 XLRnet connector: 1000BASE-T/100BASE-TX/10BASE-T USB2.0 HOST Type A connector, 4-pin (5 V, 0.5 A), for attaching the wireless module (optional) USB DEVICE USB 3.1 GEN1 type C connector, with USB mass storage function, without USB bus-powered function LIGHT 2-pin, DC12 V (DC 11.0 V – 17.0 V), maximum output current 4.5 A (up to 50 W equivalent) Monitor/Viewfinder LCD Monitor 3.5-inch LCD color monitor: Approx. 2.76 million pixels, touch panel supported Display Window 2.4-inch black and white organic EL * Weight and dimensions shown are approximate. NOTE: Specifications are subject to change without notice.

Especificações

Specification PDF

General
Power DC 12 V (11.0 V – 17.0 V)
Power Consumption 32 W (body only, 2160‑59.94p/HEVC LongGOP 100M standard recording status, LCD ON)
72 W (with all the accessories connected and maximum power supplied from each output terminal)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10% to 85% (relative humidity)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Weight* Approx. 3.4 kg (7.5 lbs.) (body only)
Dimensions* 143 mm (W) x 267 mm (H) x 348 mm (D) (5-5/8 inches x 10-1/2 inches x 13-23/32 inches)
(body only, excluding protrusion)
Camera Unit
Pickup Device MOSx1
Number of Pixels 11.14 million pixels
Lens Mount 2/3-type bayonet
Optical Filter CC filter A: 3200 K, B: 4300 K, C: 5600 K, D: 6300 K
ND filter 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Gain Setting -6 dB to 30 dB, can be set in 1 dB steps
Digital Super Gain (DS.GAIN) Selectable from 6 dB, 10 dB, 12 dB, 15 dB, 20 dB, 24 dB, 28 dB, 34 dB
Super Gain (S.GAIN) Selectable from 30 dB, 36 dB, 42 dB
Shutter Speed 59.94 Hz 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF
50.00 Hz 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF
Synchro Scan Shutter 59.94 Hz
59.94i/59.94p mode 1/60.0 sec. to 1/7200 sec.
29.97p mode 1/30.0 sec. to 1/7200 sec.
23.98p mode 1/24.0 sec. to 1/7200 sec.
50.00 Hz
50i/50p mode 1/50.0 sec. to 1/7200 sec.
25p mode 1/25.0 sec. to 1/7200 sec.
Shutter Open Angle 3.0 deg to 360.0 deg (can be set in 0.5 deg steps)
Sensitivity [NORMAL] mode F6 (2000 lx, 3200 K, 89.9% reflection, 59.94 Hz)
F7 (2000 lx, 3200 K, 89.9% reflection, 50.00 Hz)
[HIGH SENS.] mode F10 (2000 lx, 3200 K, 89.9% reflection, 59.94 Hz)
F11 (2000 lx, 3200 K, 89.9% reflection, 50.00 Hz)
Minimum Illumination Approx. 0.005 lx (F1.4, +42 dB (S.GAIN), +34 dB (DS.GAIN))
Image S/N 62 dB (standard)
Horizontal Resolution UHD 2000 TV or higher (center)
HD 1000 TV or higher (center)
Digital Zoom x2, x3, x4
Memory Card Recorder
Recording Media • expressP2 card
• microP2 card
• SDXC memory card (exceeding 32 GB to 128 GB) UHS-I/UHS-II,
UHS Speed Class 3 compatible, video Speed Class V90 compatible
Recording Slot expressP2 card slot x 1
microP2/SDXC UHS-II memory card slot x 2
Recording Pixels 3840 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD)
(AVC-Intra50: 1440 x 1080, 960 x 720)
System Frequency 59.94 Hz/50.00 Hz
Recording Format Please see the "Recording Format" table.
Recording Video Signal 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p
1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p, 59.94i, 50i
1280 x 720/59.94p, 50p
1440 x 1080/59.94i, 50i (AVC-Intra50)
960 x 720/59.94p, 50p (AVC-Intra50)
Recording Time Please see the "Recording Time" table.
Two-slot Function Simultaneous recording, Relay recording
Special Recording Pre-recording, Interval recording
Digital Video
Number of Quantizing Bits • P2: 4:2:2 10 bit/4:2:0 10 bit (AVC-Intra50)/4:2:0 8 bit (AVC‑LongG12)
• MOV: 4:2:2 10 bit)/4:2:0 8 bit/4:2:0 10 bit (HEVC)
Video Compression • P2: AVC‑Intra 422/AVC‑LongG50/AVC‑LongG25/AVC‑LongG12: MPEG-4 AVC/H.264 High Profile
• P2: AVC-Intra200/AVC-Intra100/AVC-Intra50:MPEG-4 AVC/H.264 Intra Profile
• MOV: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile
Digital Audio
Recording Audio Signal P2
48 kHz/24 bit, 4 ch (excluding AVC_LongG12)
48 kHz/16 bit, 4 CH (AVC-Intra100/AVC-Intra50*/ AVC_LongG12)

* 24 bit/16 bit switch by menu
MOV 48 kHz/24 bit, 4 CH
Audio Recording Format P2 LPCM
MOV LPCM
Headroom 18 dB/20 dB (Can be selected by menu)
Streaming
Video Compression H.264/MPEG-4 AVC Main Profile
H.264/MPEG-4 AVC High Profile
Video Resolution 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
Streaming Method Unicast, Multicast
Frame Rate [59.94 Hz] 24 fps, 30 fps, 60 fps
[50.00 Hz] 25 fps, 50 fps
Bit Rate 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
Audio Compression AAC‑LC: 48 kHz/16 bit, 2 CH
Supported Protocol RTSP/RTP/RTMP/RTMPS
Video Output
SDI OUT1 • BNC x 1
12G-SDI: 0.8 V [p‑p], 75 Ω, 3G/HD‑SDI: 0.8 V [p‑p], 75 Ω
• SDI remote control supported
• Output format (4:2:2 10 bit)
3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF,
1280 x 720: 59.94p, 50p
SDI OUT2 • BNC x 1
3G/HD‑SDI: 0.8 V [p‑p], 75 Ω, SD‑SDI: 0.8 V [p‑p], 75 Ω
• SDI remote control supported
• Output format (4:2:2 (10 bit) output)
1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF
1280 x 720: 59.94p, 50p,
720 x 480: 59.94i,
720 x 576: 50i
HDMI • HDMI type A x 1 (not compatible with VIERA Link)
• HDMI remote control supported
• Output format (4:2:2 (10-bit) output)
3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720: 59.94p, 50p,
720 x 480: 59.94p,
720 x 576: 50p
Auduio Input/Output
AUDIO IN XLR x 2 (CH1/3, CH2/4), 3-pin
LINE/MIC/MIC+48V selected by switch
• LINE: 4 dBu/0 dBu/-3 dBu selected by menu
• MIC: -40 dBu/-50 dBu/-60 dBu selected by menu
• MIC+48V: + 48 V/OFF compatible
MIC IN XLR x 1, 5-pin
+48 V ON/OFF selected by menu
-40 dBu/-50 dBu/-60 dBu selected by menu
Wireless Slot 25-pin, D-SUB, -40 dBu, 2ch supported
AUDIO OUT XLR x 1, 5-pin
4 dBu/0 dBu/-3 dBu selected by menu, equilibrium low impedance
SDI OUT LPCM 4 CH
HDMI LPCM 2 CH
Phones 3.5 mm diameter stereo mini jack x 2, output impedance 100Ω
Built-in Speaker 20 mm diameter, round x 1
Other Input/Output
GENLOCK IN BNC x 1, 1.0 V [p‑p], 75 Ω
TC IN/OUT BNC x 1, Used as input/output terminal, switch by menu
• Input: 0.5 V – 8.0 V [p-p], 10 kΩ
• Output: 2.0 V±0.5 V [p‑p], low impedance
DC IN XLR x 1, 4-pin, DC 12 V (11.0 V – 17.0 V)
DC OUT 4-pin, DC 12 V (11.0 V – 17.0 V), maximum output current 1.5 A
Lens 12-pin
VF 20-pin
LAN RJ-45 XLRnet connector: 1000BASE-T/100BASE-TX/10BASE-T
USB2.0 HOST Type A connector, 4-pin (5 V, 0.5 A), for attaching the wireless module (optional)
USB DEVICE USB 3.1 GEN1 type C connector, with USB mass storage function, without USB bus-powered function
LIGHT 2-pin, DC12 V (DC 11.0 V – 17.0 V), maximum output current 4.5 A (up to 50 W equivalent)
Monitor/Viewfinder
LCD Monitor 3.5-inch LCD color monitor: Approx. 2.76 million pixels, touch panel supported
Display Window 2.4-inch black and white organic EL
* Weight and dimensions shown are approximate.
NOTE: Specifications are subject to change without notice.
